Switches
MSM 864219 Switch |
|||||
 Available in Brass and Aluminium |
ORDER CODE | CONTACT CONFIGURATION | COLOUR | ||
|---|---|---|---|---|---|
| 864219/01/S/A | 1 X N/O - N/C (RESET) | ALUMINIUM | BLACK | ||
| 864219/01/S/B | 1 X N/O - N/C (RESET) | BRASS | BLACK | ||
| 864219/02/S/A | 1 X N/O - N/C (LATCH) | ALUMINIUM | ORANGE | ||
| 864219/02/S/B | 1 X N/O - N/C (LATCH) | BRASS | ORANGE | ||
| 864219/05/S/A | 1 X N/O (LATCH) | ALUMINIUM | RED | ||
| 864219/05/S/B | 1 X N/O (LATCH) | BRASS | RED | ||
| 864219/06/S/A | 1 X N/O (RESET) | ALUMINIUM | YELLOW | ||
| 864219/06/S/B | 1 X N/O (RESET) | BRASS | YELLOW | ||
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 1 |
| Carrying current | max. | A | 3 |
| SWITCHING DISTANCE | 25-30mm with 506019 Magnet | ||
MSM 864219 Led Switch |
||
 Available in Brass and Aluminium |
CONTACT CONFIGURATION | ORDER CODE |
|---|---|---|
| 1 X N/O (RESET) with LED | 864LED/06/24/S | |
| 1 X N/O (RESET) with LED | 864LED/06/32/S | |
| LED | ||
| Not Switched | Switched | |
| Red LED On | Green LED On | |
| Operating voltage | ||
| 12 Volt | 24 Volt | |
| 32 Volt | AC or DC | |
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 3 |
| Carrying current | max. | A | 5 |
| SWITCHING DISTANCE | 25-30mm with 506019 Magnet | ||

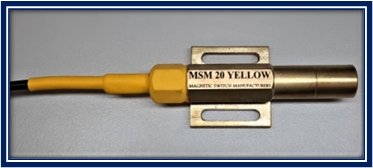

MSM 20 Switch |
|||||
 Available in Brass |
ORDER CODE | COLOUR | CONTACT CONFIGURATION | ||
|---|---|---|---|---|---|
| 20/01/S | BLACK | 1 X N/O - N/C (RESET) | BRASS | ||
| 20/02/S | ORANGE | 1 X N/O - N/C (LATCH) | BRASS | ||
| 20/05/S | RED | 1 X N/O (LATCH) | BRASS | ||
| 20/06/S | YELLOW | 1 X N/O (RESET) | BRASS | ||
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 1 |
| Carrying current | max. | A | 3 |
| SWITCHING DISTANCE | 40-45mm with 506019 Magnet | ||
MSM 20 LED |
||
 Available in Brass |
CONTACT CONFIGURATION | ORDER CODE |
|---|---|---|
| 1 X N/O (RESET) with LED | 20LED/04/24V/S | |
| 1 X N/O (RESET) with LED | 20LED/04/32V/S | |
| LED | ||
| Not Switched | Switched | |
| Red LED On | Green LED On | |
| Operating voltage | ||
| 12 Volt | 24 Volt | |
| 32 Volt | AC or DC | |
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 3 |
| Carrying current | max. | A | 5 |
| SWITCHING DISTANCE | 40-45mm with 506019 Magnet | ||
MSM SIEMENS SWITCH |
|||||
 Available in Brass and Aluminium |
ORDER CODE | COLOUR | CONTACT CONFIGURATION | ||
|---|---|---|---|---|---|
| SIEMENS/01/S/A | BLACK | 1 X N/O - N/C (RESET) | ALUMINIUM | ||
| SIEMENS/01/S/B | BLACK | 1 X N/O - N/C (RESET) | BRASS | ||
| SIEMENS/02/S/A | ORANGE | 1 X N/O - N/C (LATCH) | ALUMINIUM | ||
| SIEMENS/02/S/B | ORANGE | 1 X N/O - N/C (LATCH) | BRASS | ||
| SIEMENS/03/S/A | GREEN | 2 X N/O - N/C (RESET) | ALUMINIUM | ||
| SIEMENS/03/S/B | GREEN | 2 X N/O - N/C (RESET) | BRASS | ||
| SIEMENS/04/S/A | BLUE | 2 X N/O - N/C (LATCH) | ALUMINIUM | ||
| SIEMENS/04/S/B | BLUE | 2 X N/O - N/C (LATCH) | BRASS | ||
| SIEMENS/05/S/A | RED | 1 X N/O (LATCH) | ALUMINIUM | ||
| SIEMENS/05/S/B | RED | 1 X N/O (LATCH) | BRASS | ||
| SIEMENS/06/S/A | YELLOW | 1 X N/O (RESET) | ALUMINIUM | ||
| SIEMENS/06/S/B | YELLOW | 1 X N/O (RESET) | BRASS | ||
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 1 |
| Carrying current | max. | A | 3 |
| SWITCHING DISTANCE | 35-40mm with Siemens Magnet | ||

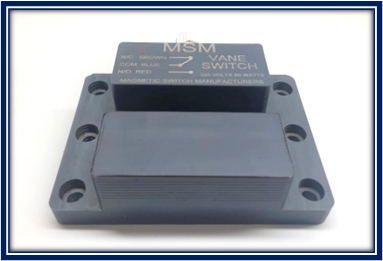

VANE SWITCH |
|||||
 Available in Nylon only |
ORDER CODE | CONTACT CONFIGURATION | |||
|---|---|---|---|---|---|
| VANESWITCH | Change Over Switch | ||||
Used at Door or Latch
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 1 |
| Carrying current | max. | A | 3 |

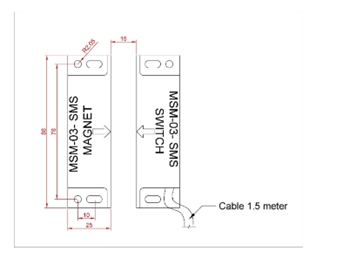

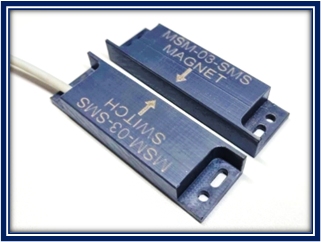

03-SMS SWITCH AND MAGNET |
|||||
 Available in Nylon only |
ORDER CODE | CONTACT CONFIGURATION | |||
|---|---|---|---|---|---|
| MSM-03 | Reset Switch | ||||
Switching Distance = 25mm
IP Rating = 65
Suitable where there is water
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 1 |
| Carrying current | max. | A | 3 |

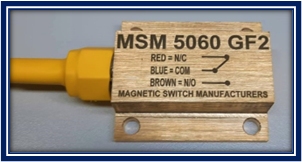

MSM 5060 GF2 Switch |
|||||
 Available in Brass , Aluminium & Nylon |
CONTACT CONFIGURATION | ORDER CODE | |||
|---|---|---|---|---|---|
| BRASS | MSM6050GF2 | ||||
| ALUMINIUM | MSM6050GF2/A | ||||
| NYLON | MSM6050GF2/N | ||||
| Technical Data | |||
| Switching capacity | max. | W/VA | 30 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 0.3 |
| Carrying current | max. | A | 0.5 |
| SWITCHING DISTANCE The 5060 GF2 Switch only contains a changeover Reset Switch |
35-40 mm with 506019 Magnet 1 Amp 220 Volts | ||
MSM TILT SWITCH |
|||||
 |
ORDER CODE | ||||
|---|---|---|---|---|---|
| Merc/S | |||||
| Technical Data | |||
| The Tilt switch only contains a 1 x N/O contact 5 Amp 220 Volts |
|||
MSM 80-D SWITCH |
|||||
 |
ORDER CODE | ||||
|---|---|---|---|---|---|
| 80D/S | |||||
| Technical Data | |||
| Switching capacity | max. | W/VA | 30 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 1 |
| Carrying current | max. | A | 3 |
| The switch only contains a 2 xs N/O RESET in Parallel 3 Amp 220 Volts | |||
MSM "U" SWITCH |
|||||
 |
ORDER CODE | ||||
|---|---|---|---|---|---|
| U-SWITCH | |||||
| Technical Data | |||
| Switching capacity | max. | W/VA | 60 |
| Switching voltage | max. | V AC/DC | 230 |
| Switching current | max. | A | 1 |
| Carrying current | max. | A | 3 |
| Switching is done by means of detecting Fe (metal) Plate Plus minus 3mm in centre of the switch |
|||
