Switching Distances

Download Catalogue

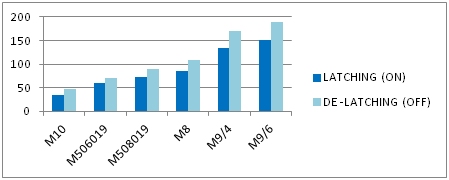

MSM 20 MAGNET



1 X NORMALY OPEN RESET
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 35 60 72 85 135 150
DE -LATCHING (OFF) 47 70 90 108 170 190


TOP

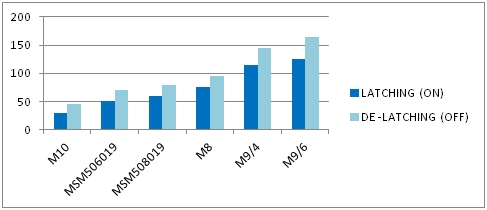

2 X NORMALY OPEN RESET
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 30 50 60 75 115 125
DE -LATCHING (OFF) 45 70 80 95 145 165


TOP

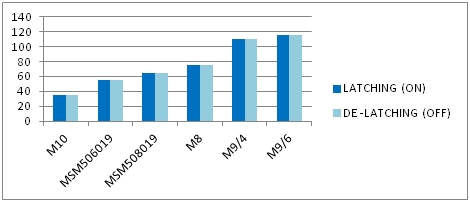

1 X NORMLY OPEN LACH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 35 55 65 75 110 115
DE -LATCHING (OFF) 35 55 65 75 110 115


TOP

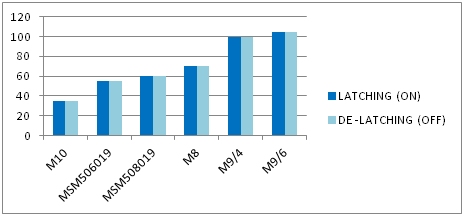

2X NORMALY OPEN LATCH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 35 55 60 70 100 105
DE -LATCHING (OFF) 35 55 60 70 100 105


TOP

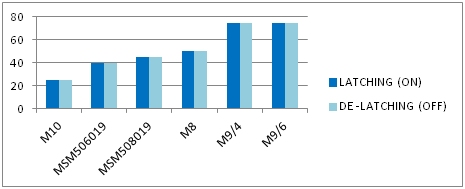

1X NORMALY CLOSE RESET
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 25 40 45 50 75 45
DE -LATCHING (OFF) 25 40 45 50 75 75


TOP

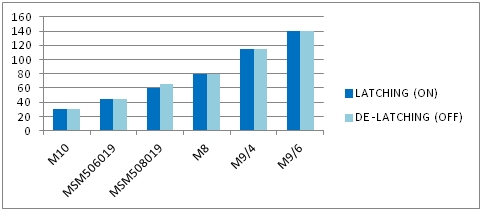

1X NORMALY CLOSE LATCH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 30 45 60 80 115 140
DE -LATCHING (OFF) 30 45 60 80 115 140


TOP


MSM 864219 MAGNET

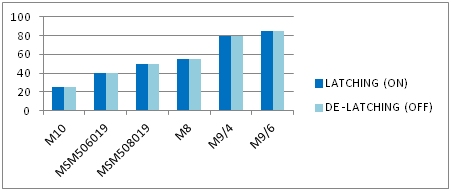

2X NORMALY OPEN RESET
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 25 40 50 55 80 85
DE -LATCHING (OFF) 25 40 50 55 80 85


TOP


2X NORMALY OPEN LATCH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 30 45 55 60 85 90
DE -LATCHING (OFF) 30 45 55 60 85 90


TOP

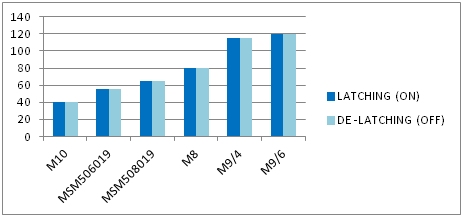

1X NORMALY CLOSE LATCH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 40 55 65 80 115 120
DE -LATCHING (OFF) 40 55 65 80 115 120


TOP

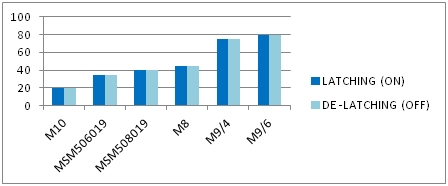

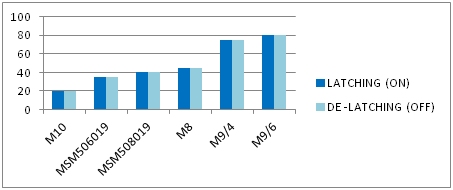

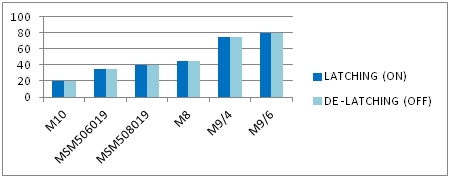

MSM 209 INSERT



2X NORMALY OPEN RESET
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 20 35 40 45 75 80
DE -LATCHING (OFF) 20 35 40 45 75 80


TOP


2X NORMALY OPEN LATCH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 20 35 40 45 75 80
DE -LATCHING (OFF) 20 35 40 45 75 80


TOP

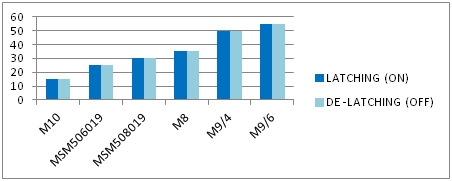

2X NORMALY CLOSE RESET
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 15 25 30 35 50 55
DE -LATCHING (OFF) 15 25 30 35 50 55


TOP


2X NORMALY OPEN LATCH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 20 35 40 45 75 80
DE -LATCHING (OFF) 20 35 40 45 75 80


TOP


2X NORMALY CLOSE RESET
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 15 25 30 35 50 55
DE -LATCHING (OFF) 15 25 30 35 50 55


TOP

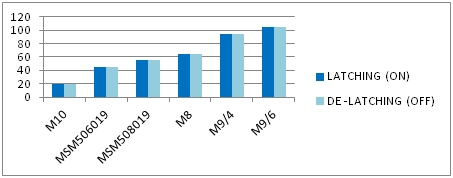

2X NORMALY CLOSE LATCH
  M10 M506019 M508019 M8 M9/4 M9/6
LATCHING (ON) 20 45 55 65 95 105
DE -LATCHING (OFF) 20 45 55 65 95 105


TOP
